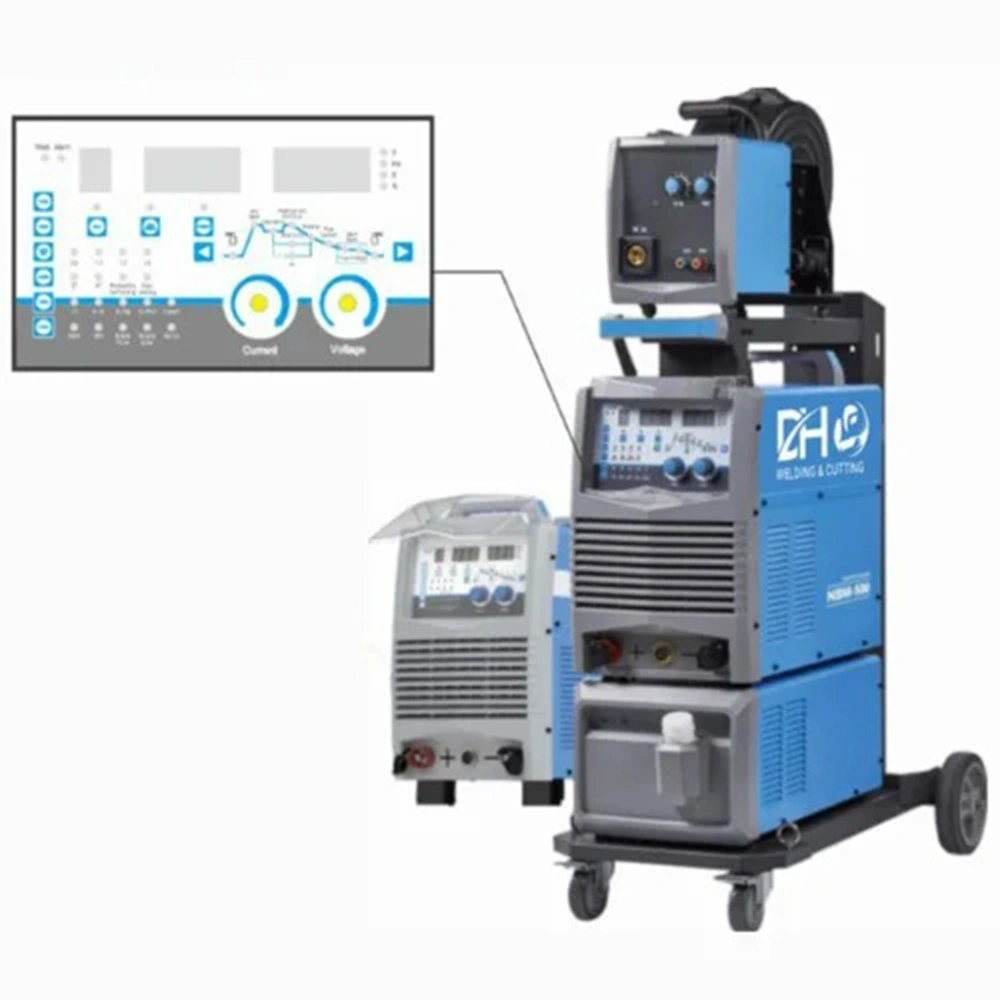

Welding machine synergic mig
MIG (DOUBLE PULSE)
- MIG (Double Pulse)
- MMA
- DC MIG/MAG
- Pulse MIG/MAG
- Dual Pulse MIG MAG
- IGBT Inverter Technology
- Closed-loop control strong arc self adjustment ability
- Strict 3-proofings design: PCB glue sealing treatment, isolated air passage, sealed air passage
- Excellent welding performance for aluminum
MIG Double Pulse Welding Machines
| MODEL | MIG-350 DP | MIG-500 DP |
|---|---|---|
| Rated Input Voltage (V) | 3P-415±15% | 3P-415±15% |
| Frequency (Hz) | 50/60 | 50/60 |
| Input Current (A) | 24 | 42 |
| Rated Input Capacity (KVA) | 16 | 28 |
| No-Load Voltage (V) | 68 | 68 |
| Duty Cycle(%) | 60 | 60 |
| Adjustment Current Range (A) | 40-350 | 40-500 |
| Adjustment Voltage Range (V) | 14-40 | 14-50 |
| Wire Diameter (MM) | 0.8-1.2 | 1.0-1.6 |
| Spool Size | 15 | 15 |
| Efficiency (%) | 80 | 80 |
| Insulation Classes | F | F |
| Real Current (A) | 350 | 500 |
| Machine Dimensions (MM) | 1150×635×1575 | 1150×635×1575 |
| Net Weight (KG) | 103 | 103 |
